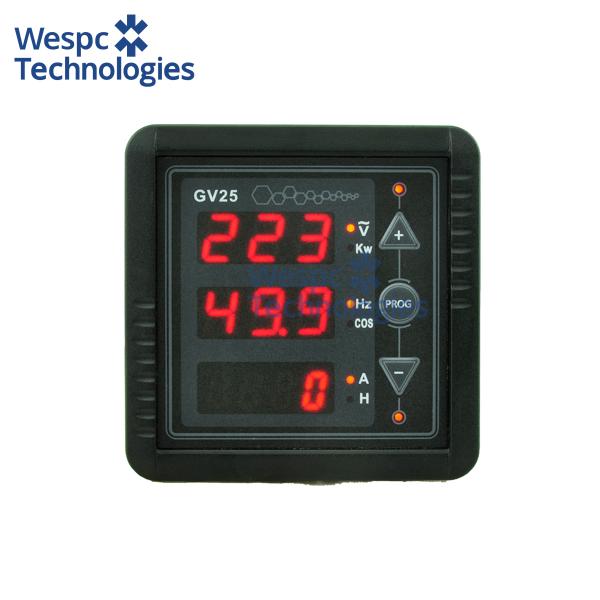

WESPC Original GV25 MKII Generator Digital Meter Voltage Current Tester Panel

WESPC Original GV25 MKII Generator Digital Meter Voltage Current Tester Panel

Summary

GV25 MKII is one updated version of GV25 meter for checking and displaying AC Voltage, Frequency, Current, Power, Power Factor and running time with light weight and low cost.It can replace traditional mechanical meter by digital display.

Features

IP54 protection level;

Voltage, Frequency,Current checking and display

3-blanks LED Tube Display

CT Ratio can be set

Parameters display

AC Voltage V

Frequency Hz

Current A

Power Kw

Power COS

Total Running time H

Range and accuracy

Voltage:

110V System: AC90～130V,deviation≤±1%；

220V System: AC165～265V,deviation≤±1%；

380V System: AC360-440V, deviation ≤±1%；

Frequency:

50Hz System: 45-60Hz,deviation≤±0.5%；

60Hz System: 55-65Hz,deviation≤±0.5%；

Current:

CT 5A: 5-6000A,deviation ≤±2.5%；

CT 50mA: 1-200A,deviation≤±2.5%；

Power: deviation ≤±3%,within the range；

Power factor: COS:0-1,deviation≤±1%；

Total Running time: 0.0-9999 hours,min record time: 0.1H.
